Blubird air hose reel is an ultimate combination of powder coated steel constructed retractable hose reel with 12 pt. ratchet locking mechanism and the lightest, strongest and most flexible blubird air hose . This combo is perfect for Automotive & DIY Industry. It is a great cost-effective alternative to motor driven reels.

Features

  • Unmatched 2 year warranty
  • 12 point ratchet system which helps lock out the hose at shorter lengths
  • Can also be mounted on wall, ceiling or floor, trucks and trailers
  • Specialised internal system reduces the spring vibration, enables quitter
    operations & extends the life of spring
  • Includes 3’ Lead-in hose
  • 20 gauge powder coated steel construction

Hose Features

  • 10 year limited warranty
  • 100% rubber construction
  • 40% lighter hose than standard rubber air hoses
  • Solid Brass fittings superior than aircraft aluminium
  • High strength polyester woven braided reinforcement
  • 300 PSI working pressure
  • 4:1 Safety factor
  • Maintains integrity under extreme weather conditions
  • Flexibility from -50°F to +190°F
  • Ozone resistant
  • Abrasion resistant
  • Kink Resistant
  • 4 finger grip bend restrictor for better use & easier control over the hose.
Constructed with 20 gauge heavy duty steel & with ribbed edges, our air hose reel ensures strength, durability and operator safety! it provides stability and reliability in any environment.

300 PSI

Working Pressure

1200 PSI

Maximum Burst Pressure

2 Year Warranty on Reel

10 Year Limited Warranty on Hose

-50° F to 190°F

Temperature Range

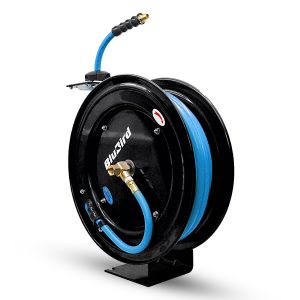

Features at a glance

  • Feature Title

    Heavy Duty Steel Construction
    Blubird air hose reel is constructed with Heavy duty powder coated steel which is highly resistant to rubbing, flaking and rust. Prolong the life of product used outdoor or in a working areas.

  • Feature Title

    12 pt. Ratchet Gearing System
    Smooth auto rewind with locking 12 point ratchet gearing system which helps to lock hose at various lengths. To latch the reel pull out the hose then allow it to retract after hearing first, second, third, forth, fifth, sixth, click.

  • Feature Title

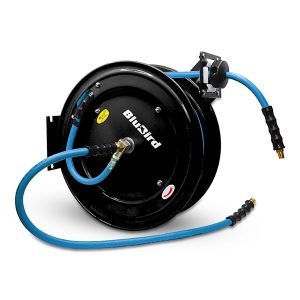

    Horizontal & Vertical wall mount options
    Blubird Air Hose reel can be mounted in horizontal and vertical postions. One can monut the reel on floor/deck, wall and as well as on ceiling. Hose reel mounting allows you to securely mount your workplace air hose reel for your compressor needs

  • Feature Title

    Blubird Rubber Air Hose
    40% Lighter than other Rubber Air Hoses, Constructed with abrasion-resistant exterior cover &polyester braided reinforcement from inside. Durability in extreme conditions from -50° to 190 °F.

Videos

  • Blubird Air Hose Reel

    Blubird Air Hose Reel
    June 7, 2021
    2:32

  • Blubird Technology

    Blubird Technology
    November 11, 2014
    7:29

  • Blubird Reel Introduction

    Blubird Reel Introduction
    March 10, 2019
    1:52

Variations

Small
Part No. Inner Diameter
(Inch)
Length
(Feet)
Inlet Fitting
(Inch)
Outlet Fitting
(Inch)
Lead-in Hose
(Feet)
Package Dimensions
L x W x H (Inch)
Package Weight
(Pounds)
BBR3825 BBR3825 BBR3825 3/8 25 3/8 Female 1/4 Male 3 6.75 x 13.50 x 15.00 20.130 Add to Inquiry Remove
BBR1225 BBR1225 BBR1225 1/2 25 1/2 Male 1/2 Male 3 6.75 x 13.50 x 15.00 20.370 Add to Inquiry Remove
Medium
Part No. Inner Diameter
(Inch)
Length
(Feet)
Inlet Fitting
(Inch)
Outlet Fitting
(Inch)
Lead-in Hose
(Feet)
Package Dimensions
L x W x H (Inch)
Package Weight
(Pounds)
BBR3850 BBR3850 BBR3850 3/8 50 3/8 Female 1/4 Male 3 17.00 x 9.00 x 19.00 30.000 Add to Inquiry Remove
BBR1250 BBR1250 BBR1250 1/2 50 1/2 Male 1/2 Male 3 17.00 x 9.00 x 19.00 33.000 Add to Inquiry Remove
