Automotive “T” Type Couplers & Plugs

Back Features Variations Download PDF
  • Automotive “T” Type Couplers & Plugs
  • Automotive “T” Type Couplers & Plugs
  • Automotive “T” Type Couplers & Plugs
  • Automotive “T” Type Couplers & Plugs

General purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Features

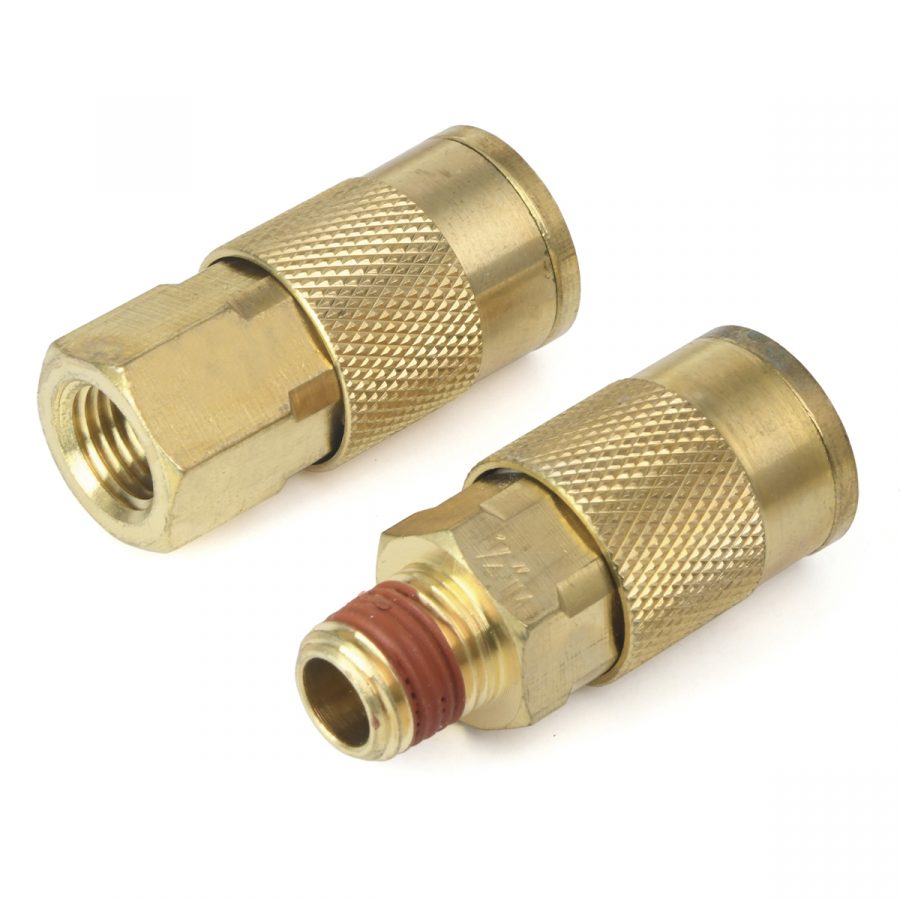

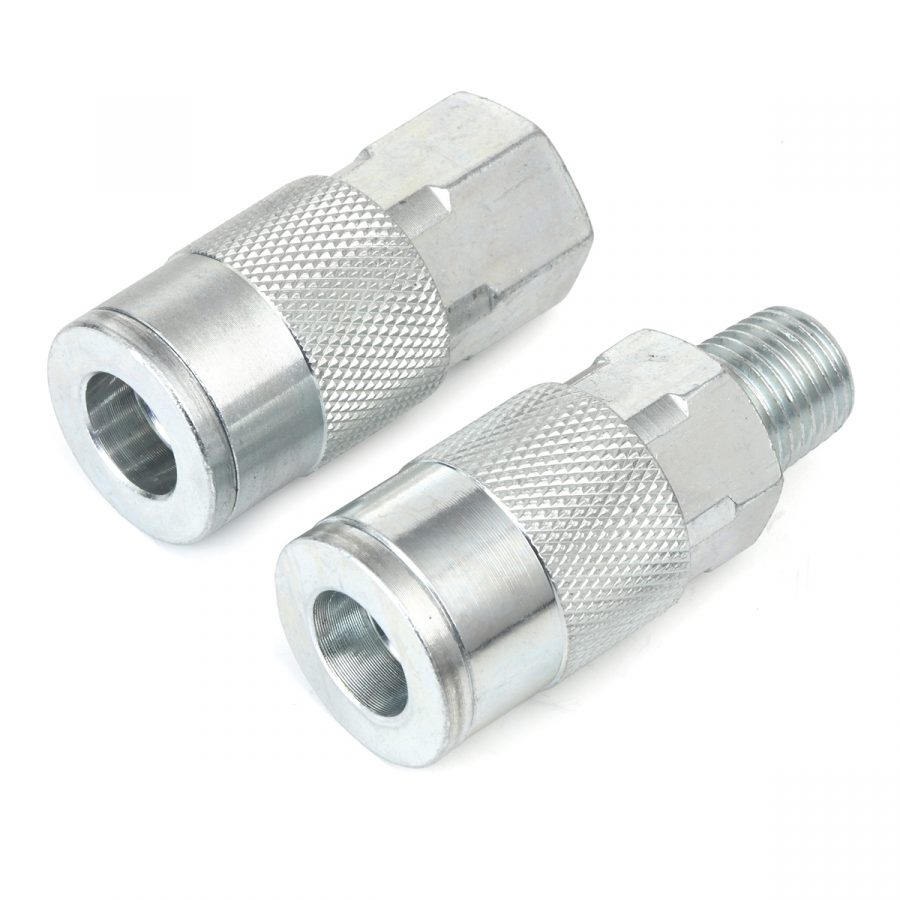

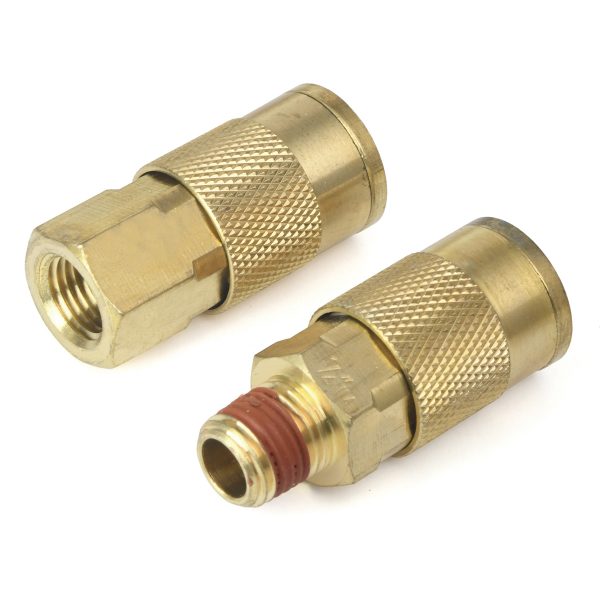

Coupler

  • Solid Heavy-Duty Construction with Ball Locking Mechanism
  • Nitrile Seals for optimum performance in extreme temperatures
  • Automotive / T-Style Interchange – Adapts to all Automotive / T-Style plugs/nipples. Deep Knurled socket sleeve for positive gripping
  • 1/4” Body Size

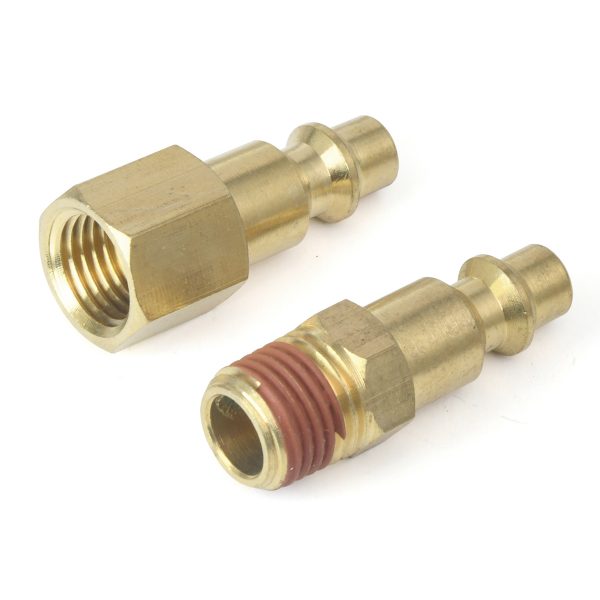

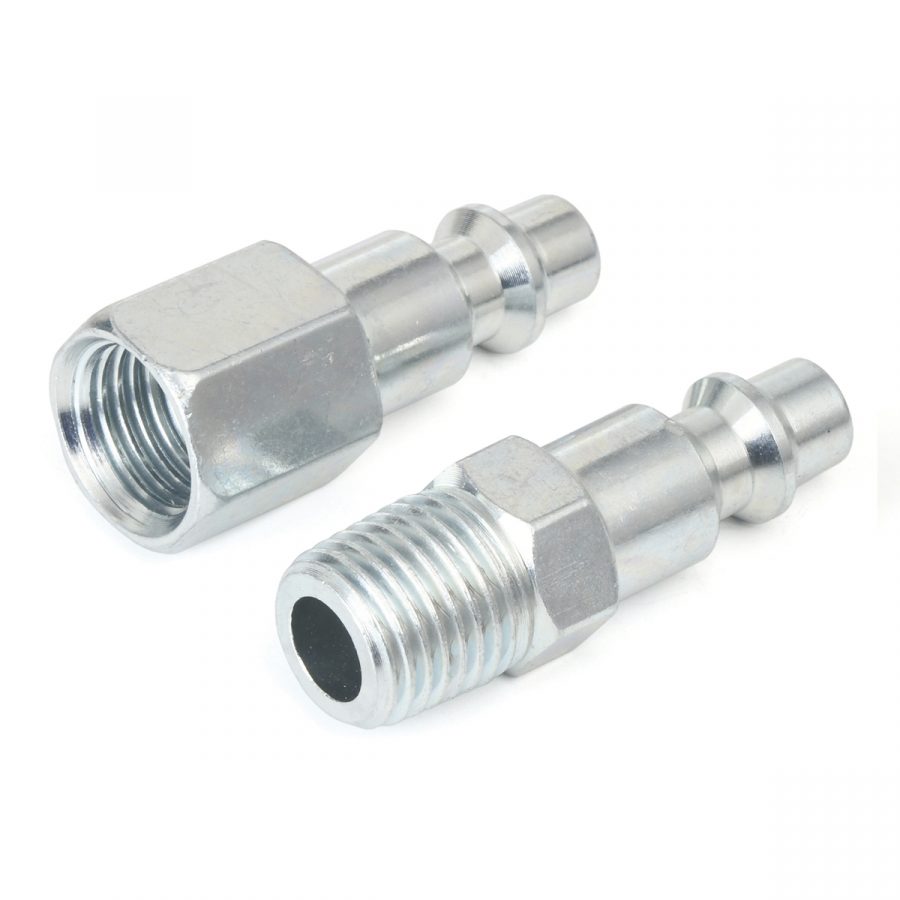

Plug

  • Solid Heavy-Duty Construction
  • Optimal sealing and high efficiency with LOCTITE sealant on threads
  • Automotive / T-Style Interchange – Adapts to all Automotive / T-StyleCouplers
  • 1/4” Body Size

Variations

Coupler
Part No. Description NPT SCFM Material Package Dimensions
L x W x H (Inch)		 Package Weight
(Pounds)
CT1401 CT1401 1/4" MNPT Brass Male Automotive Coupler - 1/4 T 1/4 35 Brass x x Add to Inquiry Remove
CT1402 CT1402 1/4" FNPT Brass Female Automotive Coupler - 1/4 T 1/4 35 Brass x x Add to Inquiry Remove
CT1403 CT1403 1/4" MNPT Brass Male Automotive Coupler - Swivel - 1/4 T 1/4 35 Brass x x Add to Inquiry Remove
CT1404 CT1404 11/4" FNPT Brass Female Automotive Coupler - Swivel - 1/4 T 1/4 35 Brass x x Add to Inquiry Remove
CT1405 CT1405 3/8" MNPT Brass Male Automotive Coupler - 1/4 T 3/8 35 Brass x x Add to Inquiry Remove
CT1406 CT1406 3/8" FNPT Brass Female Automotive Coupler - 1/4 T 3/8 35 Brass x x Add to Inquiry Remove
CT1408 CT1408 1/4" FNPT Steel Female Automotive Coupler - 1/4 T 1/4 35 Steel x x Add to Inquiry Remove
CT1407 CT1407 1/4" MNPT Steel Male Automotive Coupler - 1/4 T 1/4 35 Steel x x Add to Inquiry Remove
CT1409 1/4" MNPT Steel Male Automotive Coupler - Swivel - 1/4 T 1/4 35 Steel x x Add to Inquiry Remove
CT1410 1/4" FNPT Steel Female Automotive Coupler - Swivel - 1/4 T 1/4 35 Steel x x Add to Inquiry Remove
CT1411 CT1411 3/8" MNPT Steel Male Automotive Coupler - 1/4 T 3/8 35 Steel x x Add to Inquiry Remove
CT3801 CT3801 1/4" MNPT Brass Male Automotive Coupler - 3/8 T 1/4 67 Brass x x Add to Inquiry Remove
CT3802 CT3802 1/4" FNPT Brass Female Automotive Coupler - 3/8 T 1/4 67 Brass x x Add to Inquiry Remove
CT3804 CT3804 1/4" FNPT Brass Female Automotive Coupler - Swivel - 3/8 T 1/4 67 Brass x x Add to Inquiry Remove
CT3803 CT3803 1/4" MNPT Brass Male Automotive Coupler - Swivel - 3/8 T 1/4 67 Brass x x Add to Inquiry Remove
CT3805 CT3805 3/8" MNPT Brass Male Automotive Coupler - 3/8 T 3/8 67 Brass x x Add to Inquiry Remove
CT3806 CT3806 CT3806 3/8" FNPT Brass Female Automotive Coupler - 3/8 T 3/8 67 Brass x x Add to Inquiry Remove
CT3807 CT3807 1/4" MNPT Steel Male Automotive Coupler - 3/8 T 1/4 67 Steel x x Add to Inquiry Remove
CT3808 CT3808 1/4" FNPT Steel Female Automotive Coupler - 3/8 T 1/4 67 Steel x x Add to Inquiry Remove
CT3809 CT3809 1/4" MNPT Steel Male Automotive Coupler - Swivel - 3/8 T 1/4 67 Steel x x Add to Inquiry Remove
CT3811 CT3811 3/8" FNPT Steel Female Automotive Coupler - 3/8 T 3/8 67 Steel x x Add to Inquiry Remove
Plug
Part No. Description NPT SCFM Material Package Dimensions
L x W x H (Inch)		 Package Weight
(Pounds)
CT3810 CT3810 1/4" FNPT Steel Female Automotive Coupler - Swivel - 3/8 T 1/4 67 Steel x x Add to Inquiry Remove
PT1401 PT1401 1/4" MNPT Brass Male Automotive Plug - 1/4 T 1/4 35 Brass x x Add to Inquiry Remove
PT1402 PT1402 1/4" FNPT Brass Female Automotive Plug - 1/4 T 1/4 35 Brass x x Add to Inquiry Remove
PT1403 PT1403 1/4" MNPT Brass Male Automotive Plug - Swivel - 1/4 T 1/4 35 Brass x x Add to Inquiry Remove
PT1404 PT1404 1/4" FNPT Brass Female Automotive Plug - Swivel - 1/4 T 1/4 35 Brass x x Add to Inquiry Remove
PT1405 PT1405 3/8" MNPT Brass Male Automotive Plug - 1/4 T 3/8 35 Brass x x Add to Inquiry Remove
PT1406 PT1406 3/8" FNPT Brass Female Automotive Plug - 1/4 T 3/8 35 Brass x x Add to Inquiry Remove
PT1407 PT1407 1/4" MNPT Steel Male Automotive Plug - 1/4 T 1/4 35 Steel x x Add to Inquiry Remove
PT1408 PT1408 1/4" FNPT Steel Female Automotive Plug - 1/4 T 1/4 35 Steel x x Add to Inquiry Remove
PT1409 PT1409 1/4" MNPT Steel Male Automotive Plug - Swivel - 1/4 T 1/4 35 Steel x x Add to Inquiry Remove
PT1410 PT1410 1/4" FNPT Steel Female Automotive Plug - Swivel - 1/4 T 1/4 35 Steel x x Add to Inquiry Remove
PT1411 PT1411 3/8" MNPT Steel Male Automotive Plug - 1/4 T 3/8 35 Steel x x Add to Inquiry Remove
PT1412 PT1412 3/8" FNPT Steel Female Automotive Plug - 1/4 T 3/8 35 Steel x x Add to Inquiry Remove
PT3801 PT3801 1/4" MNPT Brass Male Automotive Plug - 3/8 T 1/4 67 Brass x x Add to Inquiry Remove
PT3802 PT3802 1/4" FNPT Brass Female Automotive Plug - 3/8 T 1/4 67 Brass x x Add to Inquiry Remove
PT3804 PT3804 1/4" FNPT Brass Female Automotive Plug - Swivel - 3/8 T 1/4 67 Brass x x Add to Inquiry Remove
PT3805 PT3805 3/8" MNPT Brass Male Automotive Plug - 3/8 T 1/4 67 Brass x x Add to Inquiry Remove
PT3803 PT3803 1/4" MNPT Brass Male Automotive Plug - Swivel - 3/8 T 1/4 67 Brass x x Add to Inquiry Remove
PT3806 PT3806 3/8" FNPT Brass Female Automotive Plug - 3/8 T 3/8 67 Brass x x Add to Inquiry Remove
PT3807 PT3807 1/4" MNPT Steel Male Automotive Plug - 3/8 T 1/4 67 Steel x x Add to Inquiry Remove
PT3808 PT3808 1/4" FNPT Steel Female Automotive Plug - 3/8 T 1/4 67 Steel x x Add to Inquiry Remove
PT3809 PT3809 1/4" MNPT Steel Male Automotive Plug - Swivel - 3/8 T 1/4 67 Steel x x Add to Inquiry Remove
PT3810 PT3810 1/4" FNPT Steel Female Automotive Plug - Swivel - 3/8 T 1/4 67 Steel x x Add to Inquiry Remove
PT3811 PT3811 3/8" MNPT Steel Male Automotive Plug - 3/8 T 3/8 67 Steel x x Add to Inquiry Remove
PT3812 PT3812 3/8" FNPT Steel Female Automotive Plug - 3/8 T 3/8 67 Steel x x Add to Inquiry Remove
